昆明元素體育籃球館橄欖樹店設計

項目名稱：元素體育昆明橄欖樹首店籃球館設計

設計方：平介設計

項目設計&完成年份：2021&2022

主創及設計團隊：董艷

項目地址：云南省昆明市官渡區黎明路118號

建筑面積：1000m2

攝影版權：王一翔

合作方：昆明碩越廣告有限公司

客戶：昆明悅體體育文化有限公司

Project Name:

Designer: Parallect Design

Time of Design & Accomplishment: 2021&2022

Main Designer and Design Team: Yan Dong

Address: No 118, Liming RD., Guandu DIST., Kunming, Yunnan

Covered Area:1000m2

Partners:Kunming Shuoyue Advertising Company

Client:Kunming Yueti Sports Culture Company

場地概況 Site Analysis

籃球館設計項目位于云南省昆明市官渡區黎明路，改造前場地為橄欖樹溫泉酒店，廢棄已久，周邊公共活動場地稀缺，在如此一個典型社區建設一塊公共活動場地則變得尤為珍貴。業主希望為該地周邊的居民和兒童提供一處可以滿足日常籃球娛樂和教育培訓的場所，籃球館設計的實踐目的是讓這樣的閑置的空地得到充分的利用，從而提高社區居民的生活品質。

The project is located in Liming Road, Guandu District, Kunming City, Yunnan Province. Before the renovation, the site was Olive Tree Hot Spring Hotel, which has been abandoned for a long time and surrounding public space for community activities is scarce. Therefore, it becomes particularly precious to build a public activity space in such a typical community. The owner hopes to provide a place for daily basketball entertainment and education and training for the surrounding residents and children. The practice of the design aims to make full use of this vacant space, so as to improve the quality of life of the community residents.

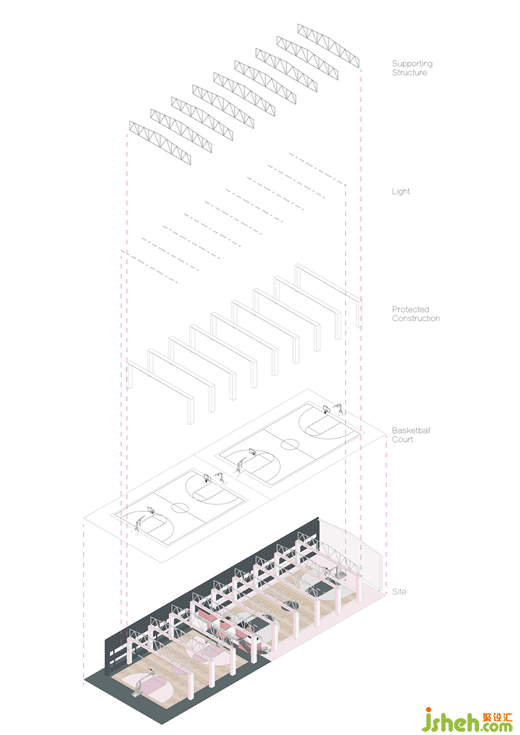

▼空間分析圖，space analysis

場地有兩個球場與一個二層的功能區組成。一塊長30米寬17米的標準籃球場，可提供正規籃球比賽與休閑活動；一塊長24米、寬17米的球場，雖然面積不大，但足以為兒童提供教育培訓、比賽等需求。此外還配備了一些功能空間設施，如入口前臺、洗手間、更衣室、辦公室，二層休閑看臺，貴賓室，一切都是開放和共享的。

The site consists of two courts and a second storey functional area. A standard basketball court, 30 meters long and 17 meters wide, can provide regular basketball games and leisure activities; A pitch 24 meters long and 17 meters wide, although small, but enough for children to provide education, training, games and other needs. In addition, there are some functional space facilities, such as the entrance front desk, toilets, changing rooms, offices, the second level casual grandstand, VIP room, everything is open and shared.

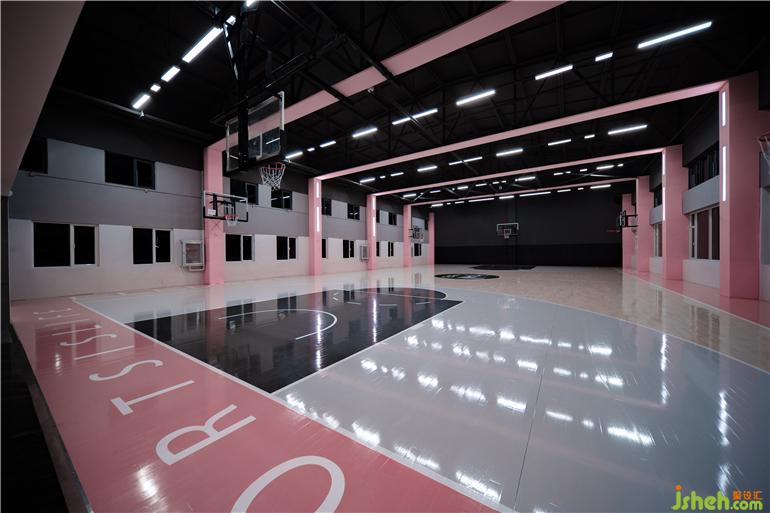

▼球場一側的粉色場地Pink Basketball Court © Yixiang Wang

從電梯直升三層入口的流線可進入前臺區域。籃球館設計根據使用的需要，前臺被放置于整個場地的中央，更衣室、洗手間和辦公室均位于前臺背面的一層空間，觀看臺位于二層，觀眾和運動員被安排從不同的入口連接比賽場地。

The front desk area is accessed by the flow from the elevator to the third floor entrance. According to the needs of the use, the front desk is placed in the center of the whole field, the changing rooms, toilets and offices are located on the ground floor behind the front desk, the viewing platform is located on the second floor, and the spectators and athletes。

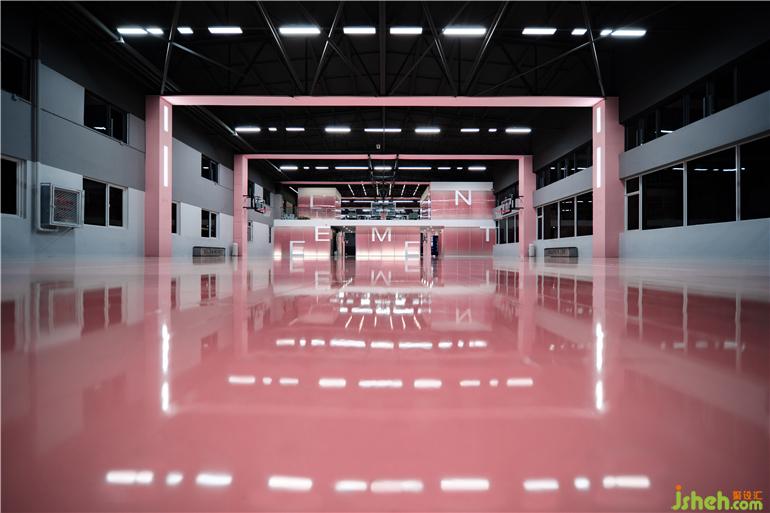

▼從運動場望向中央功能區，View to the interior room from the basketball court © Yixiang Wang

設計理念 Design Concept

整體的籃球館設計思路是展現街頭與工業元素，主要采用混凝土、金屬板、漸變亞克力、膠合板、吸音軟包等材料，使室內空間呈現出深淺不一的氛圍感?；@球館設計為了讓空間更具識別性，空間中引入了被稱作“無性別化”的明亮粉色與燈條，用于標示和強調場地中的關鍵區域，對比強烈的色彩也為空間賦予了一種特殊的幾何與力量感。

The overall design idea is to show the street and industrial elements, mainly using concrete, metal plate, gradual acrylic, plywood, soft package and other materials, so that the interior space presents a sense of atmosphere of different shades. In order to make the space more identifiable, the bright pink and light strips called "gendered" are introduced to mark and emphasize the key areas of the site. The contrasting colors also give the space a special sense of geometry and power.

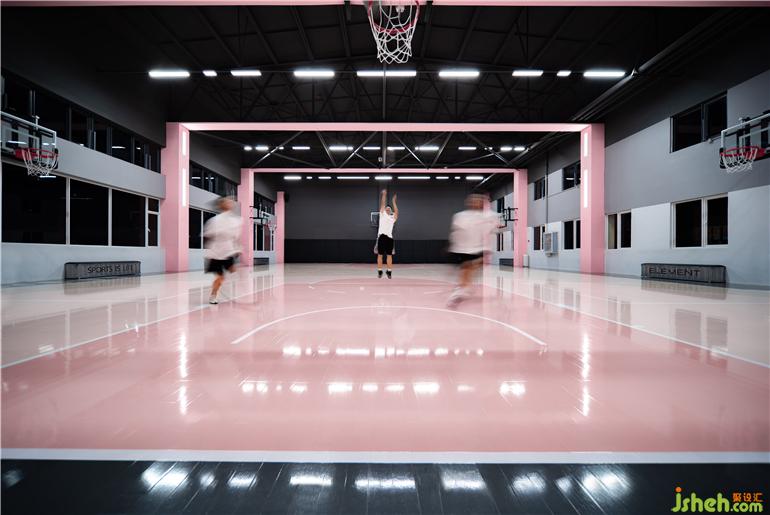

▼中央功能區視角，View to the interior room from the basketball court © Yixiang Wang

這個廢棄場地的吊頂結構建立在一體化的鋼筋混凝土樓板上，籃球館設計預制的鋼筋混凝土立柱構成了垂直方向的支撐結構。屋頂處的桁架采用了統一噴黑處理，一跨度達到6米，在立柱之間以不同灰度的的隔音墻板填充，立柱也運用了吸聲防撞粉色軟包與吊頂連接為一體。

The suspended ceiling structure of the abandoned site is built on an integrated reinforced concrete floor slab, with prefabricated reinforced concrete columns forming vertical support structures. The trusses on the roof are uniformly black-sprayed, with a span of 6 meters. Soundproof wall panels of different gray levels are used to fill the space between the columns. The columns are also connected with the suspended ceiling by a soft pink package of sound absorption and anti-collision.

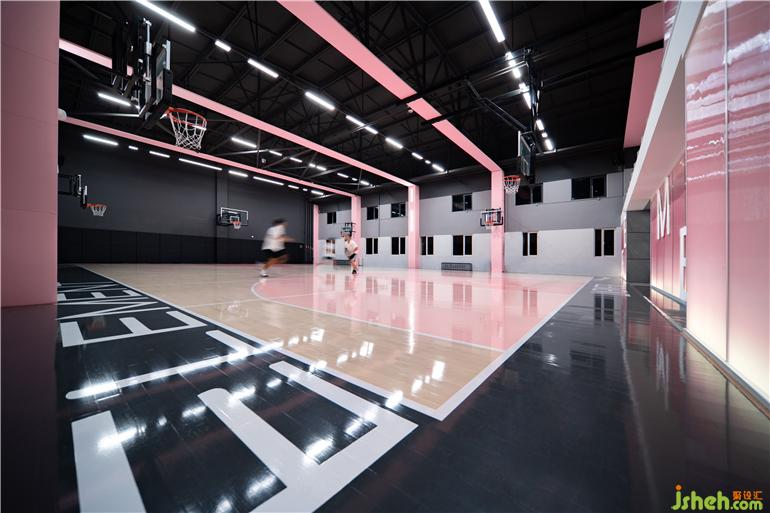

▼室內采用黑色與粉色，配合橡木質地板等，創造一個有層次的空間，basketball court, using the neutral color tones, oak floor system to create an interior space with simple and elegant spatial layers © Yixiang Wang

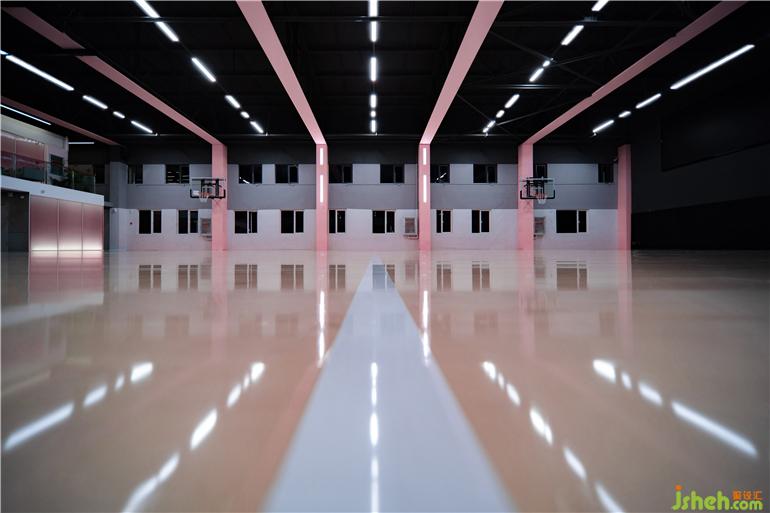

▼場地中的線性燈帶與粉色圍護結構組成的秩序感，A sense of order formed by linear light belts and pink envelope in the site © Yixiang Wang

線型軸線Color Palette

籃球館設計采用線性的視覺元素，將吊頂、地面、墻面三個界面聯系在一起，并在這些矩形區域內設置了運動看臺、社交長椅以及供運動者休息的座位裝置等。籃球館設計引人注目的“粉色矩陣”將球場與環境聯系起來，在視覺上延伸空間縱深感，為人們提供了連續的視野感受。

The design uses linear visual elements to connect the three interfaces of the ceiling, the ground and the wall. Within these rectangular areas, there are sports stands, social benches and seating devices for the athletes to rest. The striking "pink matrix" connects the pitch to the environment, visually extending the depth of the space and providing a continuous view.

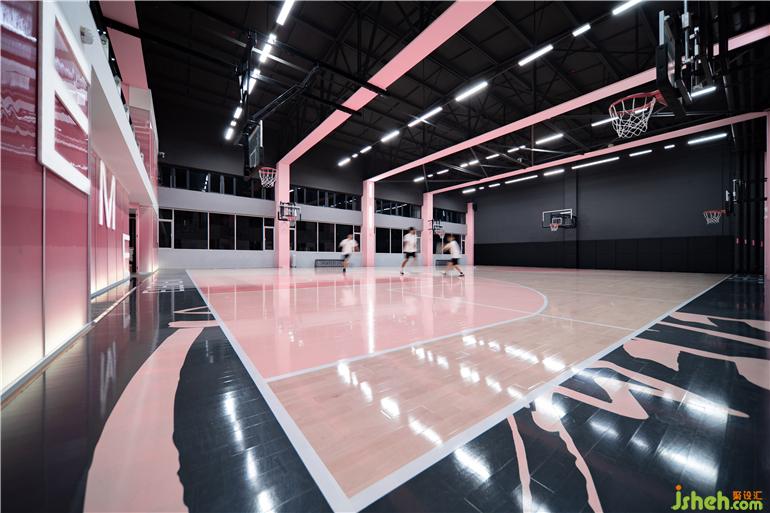

▼線型空間Linear visual elements© Yixiang Wang

線性元素的亞克力燈條與包在柱位與鋼架的粉色色彩也起到了定義空間的作用，旨在在視覺與材質上將不同運動空間銜接在一起。

The acrylic light strips with linear elements and the pink color surrounding the columns and steel frames also play a role in defining the space, aiming to connect the different movement Spaces visually and materially.

長短不一的燈條形成了一種充滿音樂感的節奏，如飄浮的音符，延伸至兩側，激發人們的活力，籃球館設計將他們的動作幅度放大，讓場上的比賽更顯激烈，給人留下難忘的印象。

The different lengths of the lights form a musical rhythm, such as floating notes, extending to the sides, stimulating people's energy, enlarging their range of action, making the game more intense, leaving a memorable impression.

空間中水平軸所表達的意象，就是無限延伸的幻想。在空間使用大量線性比例，線形燈具排列從前臺延伸至球場大塊面的墻體柱面甚至吊頂桁架?；@球館設計線性燈具的漂浮感，與包裹于墻體和吊頂?shù)姆凵洶?xì)膩的律動起伏，描繪成一幅會呼吸的有機畫面。

The image expressed by the horizontal axis in space is the fantasy of infinite extension. A large number of linear proportions are used in the space, with linear lighting arrangements extending from the front desk to the wall columns and even the ceiling trusses on the large surface of the court. The floating sense of linear lamps and lanterns, together with the pink soft bag wrapped in the wall and ceiling, the delicate rhythm and fluctuation, depict a breathing organic picture.

色彩提煉Color Palette

整體視覺色彩中，黑色粉色搭配帶來強烈視覺沖擊力，搭配中和了粉色稚嫩的感，凸顯空間的沉穩與深邃，籃球館設計平衡了粉紅色帶來的充滿活力和快樂的感覺，創造出極致純粹的空間觀感。

In the overall visual color, black and pink collocation brings strong visual impact, collocation neutralizes the feeling of pink tenderness, highlights the calm and profound space, balances the feeling of vitality and happiness brought by pink, and creates the ultimate pure space perception.
